High security wardrobe

  • Industry and logistics

The T30 range offers safety wardrobe for the storage of various flammable, corrosive, acidic and alkaline toxic product with high pressure laminate (HPL) construction. These safety wardrobe are built in accordance with the NF EN 14470-1 standard which concerns the resistance of 30 minutes in case of fire.

More details

    Wardrobe have multiple compartments with height-adjustable shelves, a retention tray, a door with opening retention and an automatic closure. These wardrobe have an optimal safety because they integrate airing with a shutter device in case of fire.

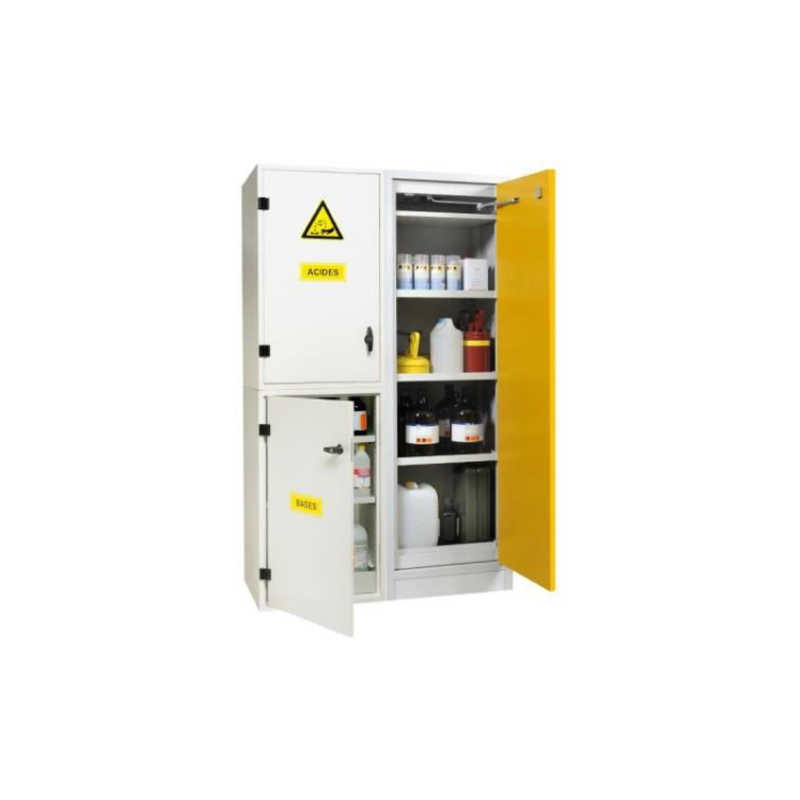

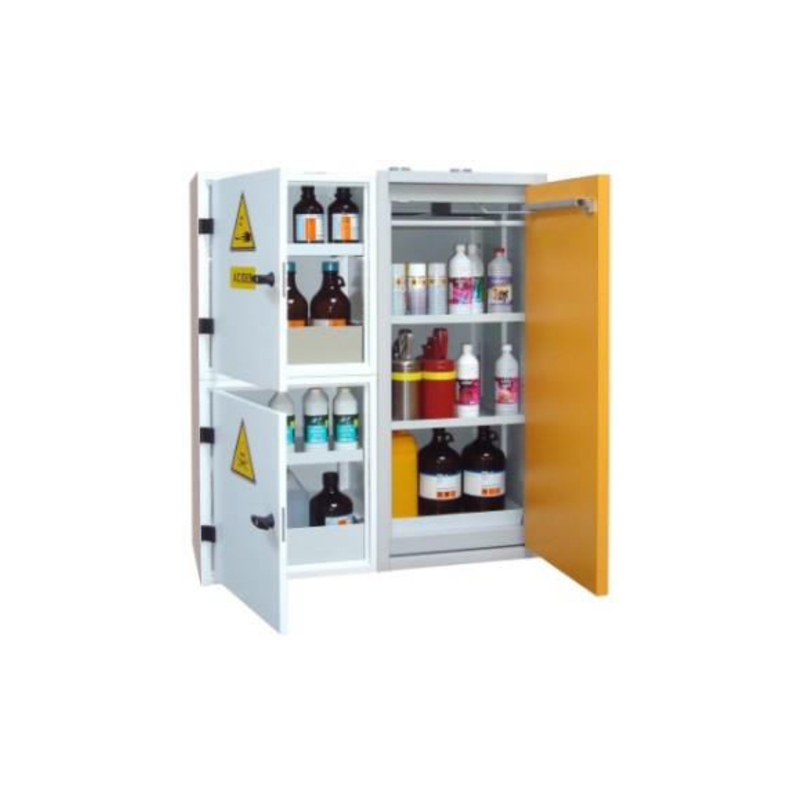

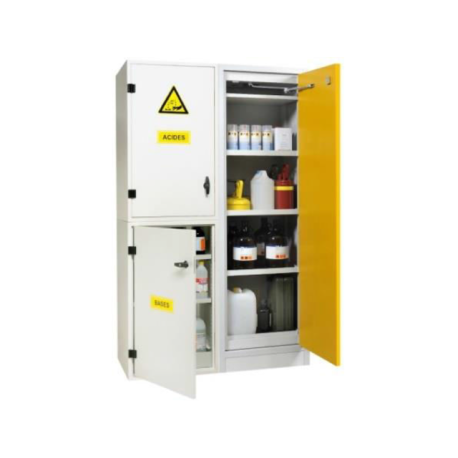

    The safety wardrobe for flammable products

    The flammable products wardrobe has two compartments. One is equipped with anti-corrosion protection and a high-pressure laminate construction (HPL), a gray RAL 7035 and RAL 1007 yellow for doors. The shelves can be adjusted in height at a pitch of 32 mm. and retention tray with perforated installation surface. The doors are equipped with an opening maintenance with automatic closing in case of fire (thermo fuse> 50 ° C). Airing is equipped with an automatic shut-off device in case of fire (Ø 80 mm, connection on the roof). The wardrobe has two compartments including 1 equipped with anti-corrosion protection. Exists on average and narrow or high and narrow.

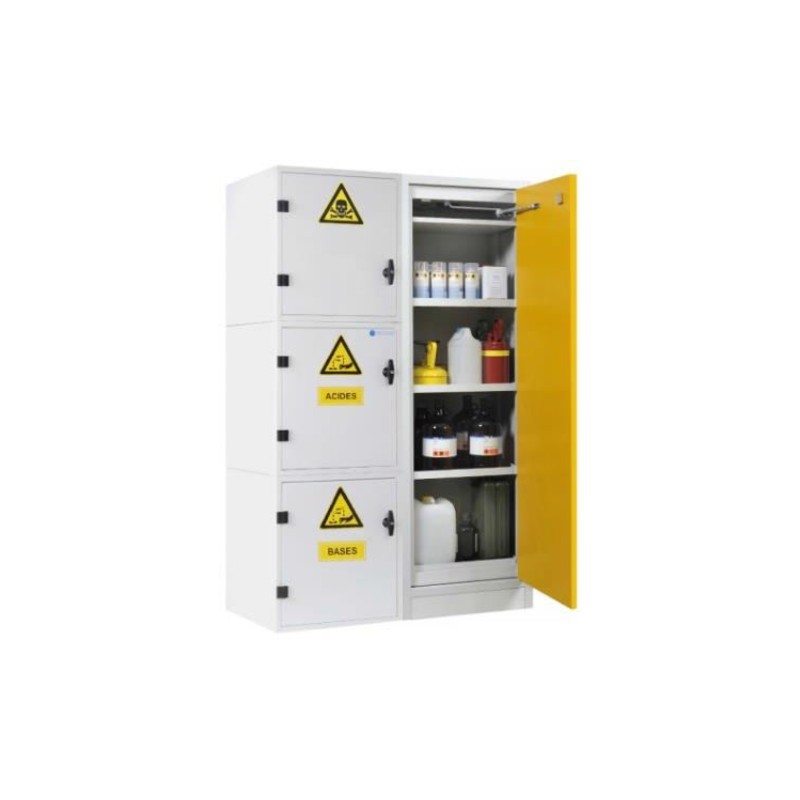

    The safety wardrobe for toxic products

    The wardrobe for acidic corrosive products and bases, toxic has three compartments. One is equipped with corrosion protection, a single-walled steel, a powder paint high chemical resistance polymerized in the oven, and a white color RAL 9003. The shelves of retention are height adjustable at 25mm pitch and have HDPE corrosion protection for the acid compartment. The retention tank is made of PPH for the acid compartment. The centralization plenum is on the rear side to ventilate the compartments (Ø 80 mm, connection on the top).

    Range T30Outside dim.
    H x L x P
    WeightLoad eligible per shelfCompartmentDim. int. H x L x PShelves

    Capacity retention tray

    Storage volume Recommended
    Medium Wardrobe1320 x 1180 x 60019660 kg

    Flammable
    Acids
    Bases

    1108 x 475 x 519
    610 x 506 x 474
    610 x 506 x 474
    2
    1
    1
    23 L
    27 L
    27 L
    70 L
    35 L
    35 L
    High Wardrobe1950 x 1180 x 60025260 kgFlammable
    Acids
    Bases
    1660 x 480 x 519
    935 x 506 x 474
    935 x 506 x 474
    3
    2
    2
    23 L
    27 L
    27 L
    120 L
    65 L
    65 L
    High Wardrobe1950 x 1180 x 60025960 kgFlammable
    Toxic
    Acids
    Bases
    1660 x 480 x 519
    610 x 506 x 474
    610 x 506 x 474
    610 x 506 x 474
    3
    1
    1
    1
    23 L
    27 L
    27 L
    27 L
    120 L
    35 L
    35 L
    35 L
